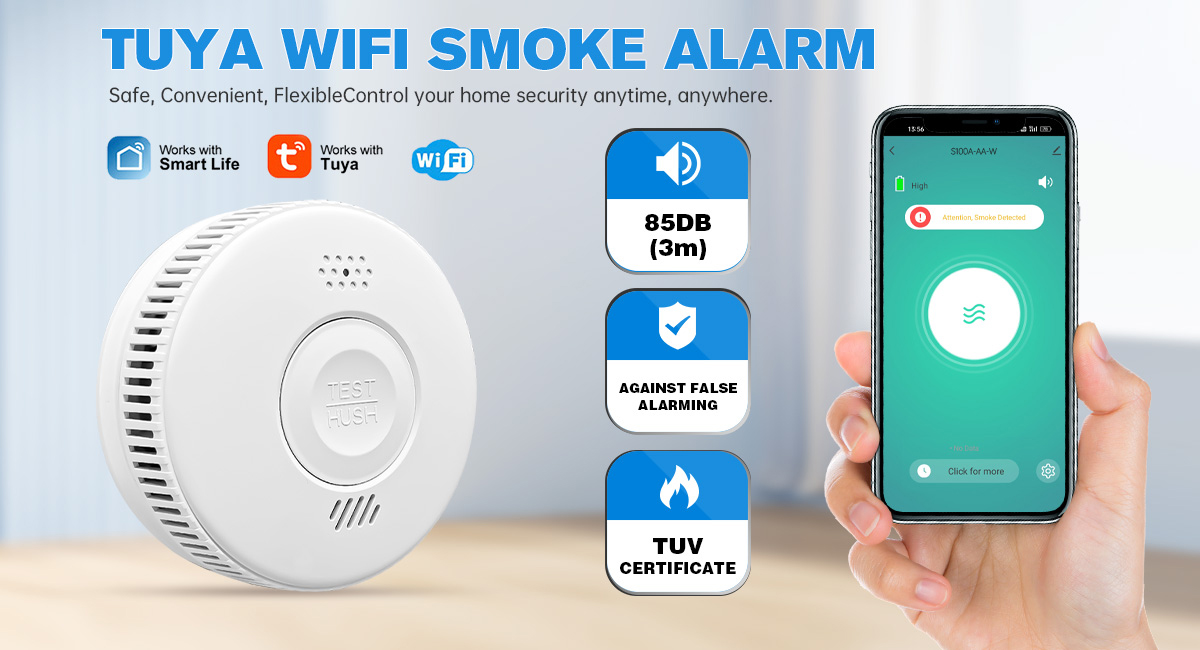

The Smoke Detector offers reliable performance and seamless integration with Tuya smart home automation systems. It supports smart home Tuya features like APP remote control via the Tuya or smartlife app, allowing you to silence alarms remotely and share the device with multiple users. Designed with smart home devices in mind, this product ensures top-tier safety for your Tuya smart home system.
How To Set Up Your TUAY Wifi Smoke Alarm
Enjoy easy installation - - First, you need to download "TUAY APP / Smart Life APP" from Google Play (or app store) and create a new account. Then watch the video on the right to teach you how to pair a smart smoke alarm.
Our Smoke Alarm Won The 2023 Muse International Creative Silver Award!
MuseCreative Awards
Sponsored by the American Alliance of Museums (AAM) and the American Association of International Awards (IAA). it is one of the most imfluential international awards in the global creative field. "This award is elected once a year to honor artists who have made outstanding achievements in communication art.
| Model | S100A-AA-W(WIFI) | Wifi RF power | Max+16dBm@802.11b |
| Type | WiFi | APP | Tuya / Smart Life |
| WiFi | 2.4GHz | Output form | Audible and Visual alarm |
| Standard | EN 14604:2005、EN 14604:2005/AC:2008 | Low battery | 2.6+-0.1V(≤2.6V WiFi disconnected ) |
| Decibel | >85dB(3m) | Relative Humidity | ≤95% RH (40℃±2℃ Non-condensing) |
| Static current | ≤15uA | Alarm LED light | Red |
| Working voltage | DC3V | WiFi LED Light | Blue |
| Alarm current | ≤300mA | Operation temperature | -10℃～55℃ |
| Silent time | About 15 minutes | N.W | 158g(Contains batteries) |
| Battery type | DC 3V AA battery | Battery Capacity | each one is 2900mAh |
The Smoke Alarm with wifi function, integrated with Tuya Smart Home, adopts a photoelectric sensor with a specialized structural design and a reliable MCU to effectively detect smoke generated during the initial smoldering stage or after a fire. Seamlessly compatible with Tuya smart home automation systems, this smoke alarm ensures smarter safety and enhanced reliability.
When smoke enters the alarm, the light source produces scattered light, which is detected by the receiving element. The light intensity correlates linearly with the smoke concentration, enabling accurate detection. The Tuya smart home app allows remote monitoring and control, making it easy to silence alarms or share the device with multiple users.
The smoke alarm continuously collects, analyzes, and evaluates field parameters. Once the light intensity reaches the pre-set threshold, the red LED will light up, and the buzzer will issue a loud alarm. As the smoke clears, the alarm will automatically return to its normal working state.
With its integration into the Tuya Smart Home system, this device becomes an essential part of any smart home Tuya ecosystem, offering cutting-edge safety and effortless control for modern homes. Perfect for those building or expanding their Tuya smart home automation setup.

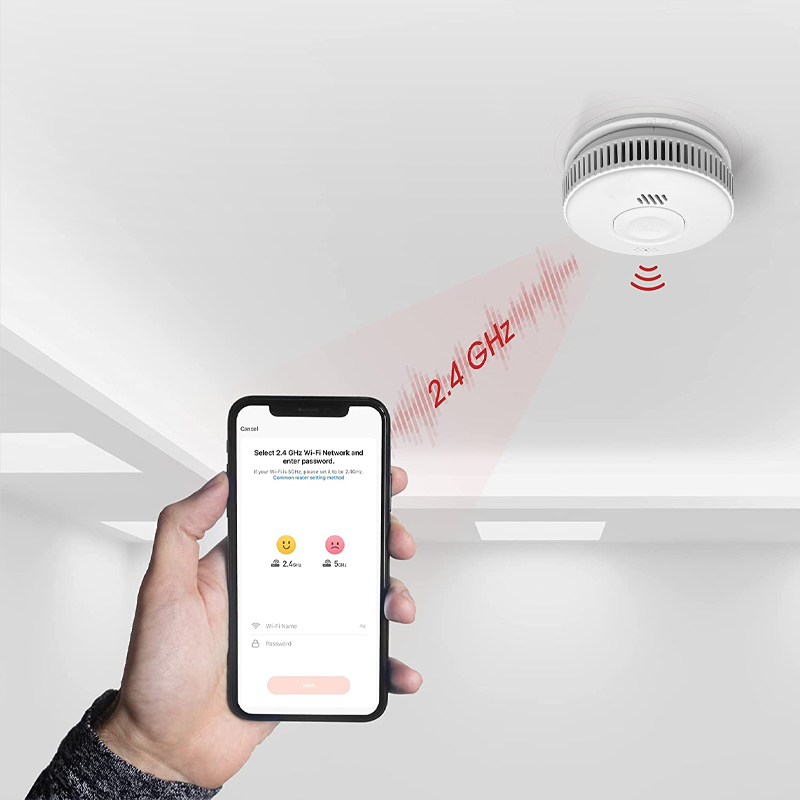

Wi-Fi Connection via 2.4 GHz
we have integrated wifi module allows this smoke alarm connect to your wifi at home.
Safety Monitoring by All Family Members
You can share the WiFi Enabled Smoke Alarm with your family, they will receive the notification too.
Mute Function
Avoid false alarm when someone smoke at home (mute for 15 minutes)

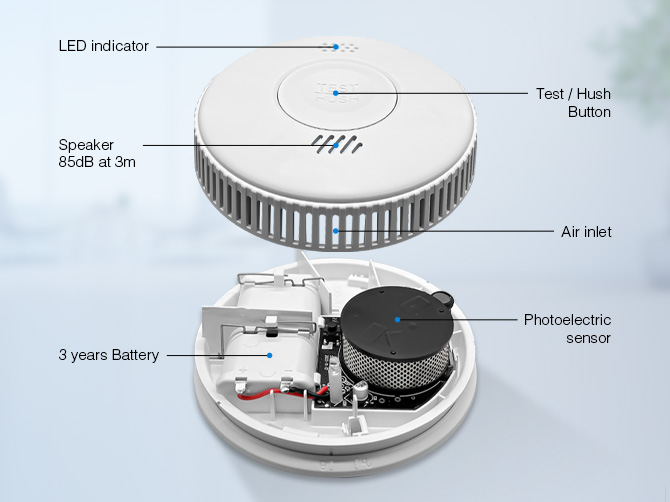

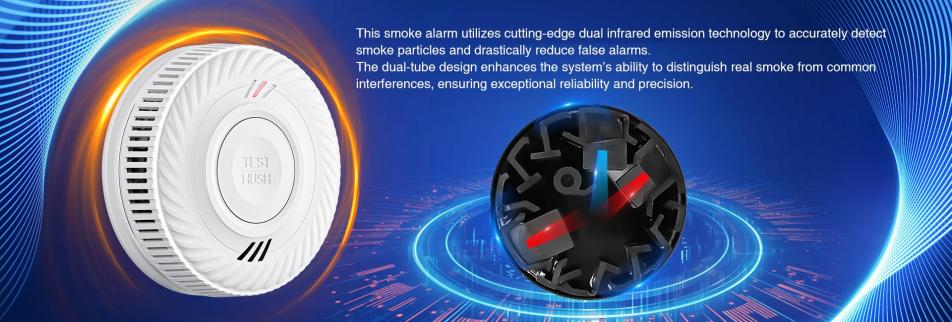

The WiFi Smoke Alarm Detector was integrated with 2 infrared photoelectric sensors and wifi module inside ,Which is reliable for detecting smoldering smoke and black smoke,This technology can efficient reduce false alarming,Also, You can connect to tuya app to get the fire notification anytime and everywhere.
Built-in Insect Screen Design
It can effectively prevent mosquitoes from triggering the alarm. The insect-proof hole has a diameter of 0.7mm.

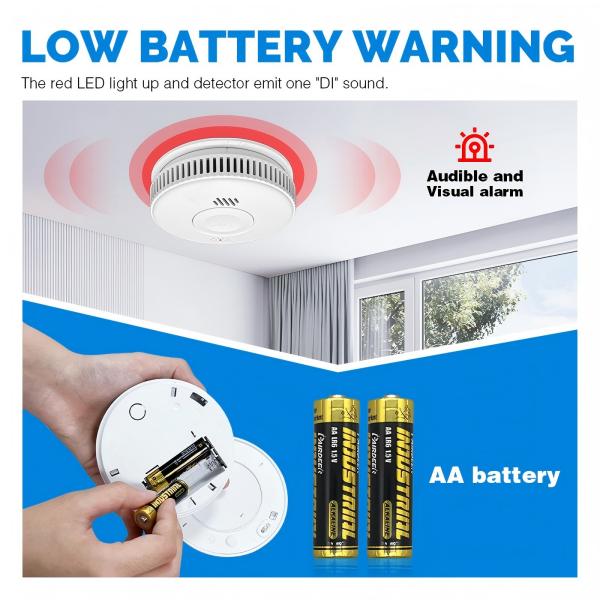

Low Battery Warning
When the voltage drops below a preset threshold, the device triggers an alert using sound beeps, LED flashes, or notifications, ensuring users are promptly reminded to replace the battery and maintain the device's functionality. .
Simple Installation Steps
1. Rotate the smoke alarm counterclockwise from the base;
2.Fix the base with matching screws;
3.Turn the smoke alarm smoothly until you hear a "click", indicating that the installation is complete;
4.The installation is completed and the finished product is displayed.
The smoke alarm can be installed on the ceiling .If it is to be installed on sloping or diamond-shaped roofs, the tilt Angle should not be greater than 45° and a distance of 50cm is preferable.

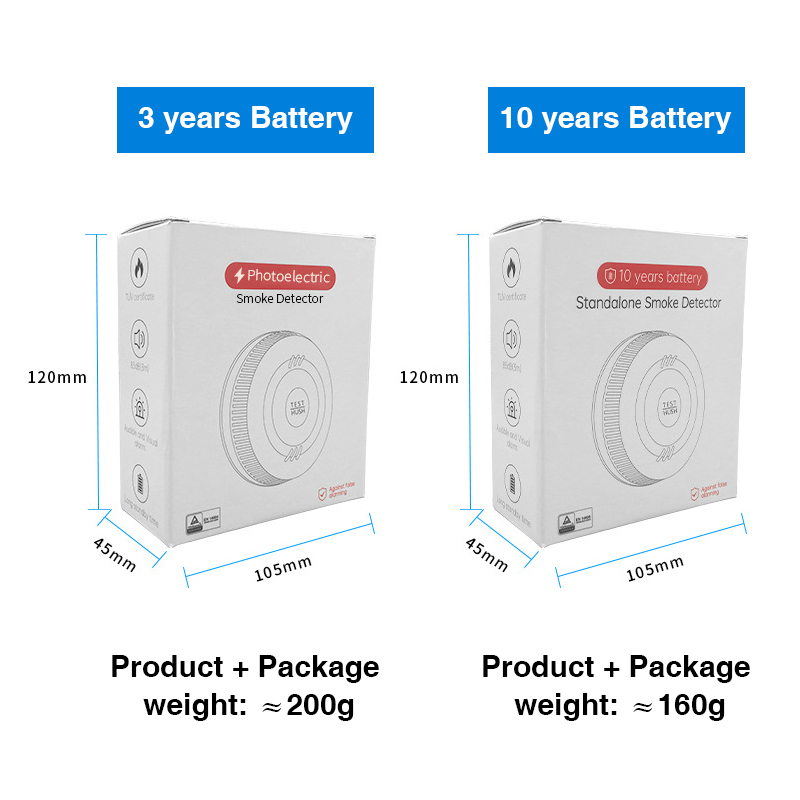

Color Box Package Size
Outer Box Packing Size
