They detect smoke in one location and trigger all connected alarms to sound simultaneously, enhancing safety.
S100A-AA-W(433/868) – Interconnected Battery Smoke Alarms
Summarized Features:
- Interlinked Alerts – All units sound together for wider fire warning coverage.
- Replaceable Battery – 3-year battery design for easy, low-cost maintenance.
- Tool-Free Mounting – Simplifies installation in large-scale property rollouts.
RF Create a group in the first use (i.e. 1/2)
Take any two alarms that need to be set up as groups and number them as " 1"
and "2" respectively.
1. Devices must work with the same frequency. 2. The distance between the two devices is about 30-50CM.
3.Before pairing the smoke detector, please insert 2 AA batteries correctly.
After hearing the sound and seeing the light, wait 30 seconds before performing the
following operations.
4. Press the "RESET button" three times, the green LED lights up means it is in
networking mode.
5. Press the “RESET button” of 1 or 2 again, you will hear three “DI” sounds, which means the connection starts.
6. The green LED of 1 and 2 flashing three times slowly, which means that the
connection is successful.
[Notes and Notices]

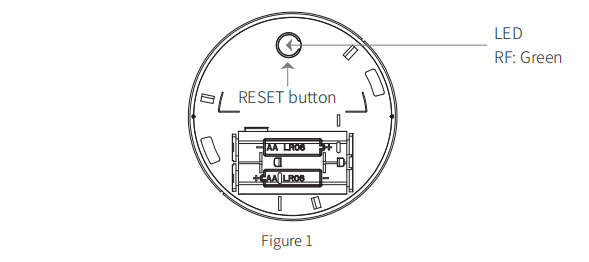

1. RESET button. (Figure 1)
2. Green light.
3. Complete the connection within one minute. If exceeds one minute, the product identifies as timeout, you need to re-connect.
How to Added more alarms to Group (3 - N)
1. Take the 3 (or N) alarm.
2. Press the "RESET button" three times.
3. Select any alarm (1 or 2) that has been set up in a group, press the
"RESET button" of 1 and wait for the connection after three "DI" sounds.
4. The new alarms’green led flashing three times slowly, the device is successfully
connected to 1.
5. Repeat the above steps to add more devices.
[Notes and Notices]
1. If there are many alarms to be added, please add them in batches( 8-9 pcs in one
batch)，otherwise, network failure due to the time exceeding one minute.
2. Maximum 30 devices in a group.
Exit the group
Press the "RESET button" twice quickly, after the green LED flashes twice, press and
hold the "RESET button" until the green light flashes quickly, meaning it has
successfully exited the group.
Installation and Test
For general places, when the space height is less than 6m, the alarm with a protection
area of 60m. The alarm shall be mounted on the ceiling.
1. Remove the ceiling mount.
2. Drill two holes with a spacing of 80mm on the ceiling with a suitable drill, and then
stick the included anchors in the holes and mount the ceiling install with both screws.
3. Install 2pcs AA batteries in the correct direction.
Note: If the positive and negative polarity of the battery is reversed, the alarm cannot
work normally and may damage the alarm.
4. Press the TEST / HUSH button, all paired smoke detectors will alarm and LED flash.
If not: Please check if the battery is installed correctly, the battery voltage is too low
(less than 2.6V ±0.1V) or smoke detectors not paired successfully.
5. After testing, simply screw the detector in the ceiling mount until you hear a "click".
| Parameter | Details |
| Model | S100A-AA-W(RF 433/868) |
| Decibel | >85dB (3m) |
| Working voltage | DC3V |
| Static current | <25μA |
| Alarm current | <150mA |
| Low battery voltage | 2.6V ± 0.1V |
| Operation temperature | -10°C to 50°C |
| Relative Humidity | <95%RH (40°C ± 2°C, Non-condensing) |
| Indicator light failure impact | The failure of the two indicator lights does not affect the normal use of the alarm |
| Alarm LED light | Red |
| RF Wireless LED light | Green |
| Output form | Audible and Visual alarm |
| RF mode | FSK |
| RF frequency | 433.92MHz / 868.4MHz |
| Silent time | About 15 minutes |
| RF Distance (Open sky) | Open sky <100 meters |
| RF Distance (Indoor) | <50 meters (according to the environment) |
| Battery Capacity | 2pcs AA battery；Each one is 2900mah |
| Battery life | About 3 years (may vary depending on usage environment) |
| RF wireless devices support | Up to 30 pieces |
| Net weight (N.W.) | About 157g (contains batteries) |
| Standard | EN 14604:2005, EN 14604:2005/AC:2008 |

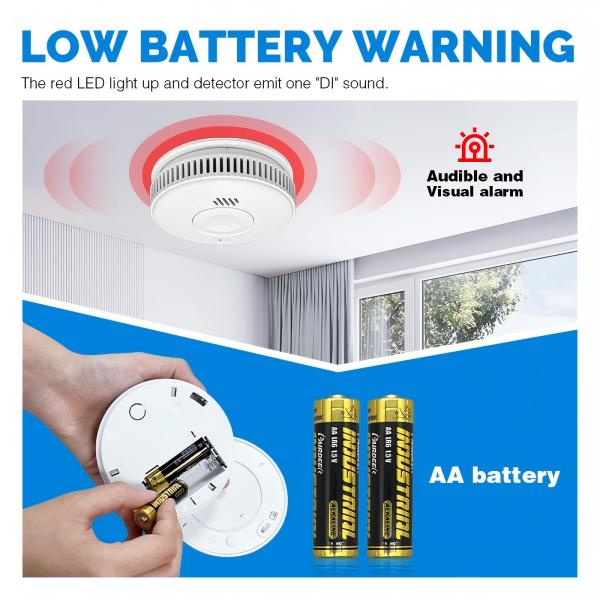

battery replacement
Quick-access battery compartment simplifies maintenance—ideal for large-scale property use.
15-Minute False Alarm Pause
Easily silence unwanted alarms during cooking or steam events without removing the device.

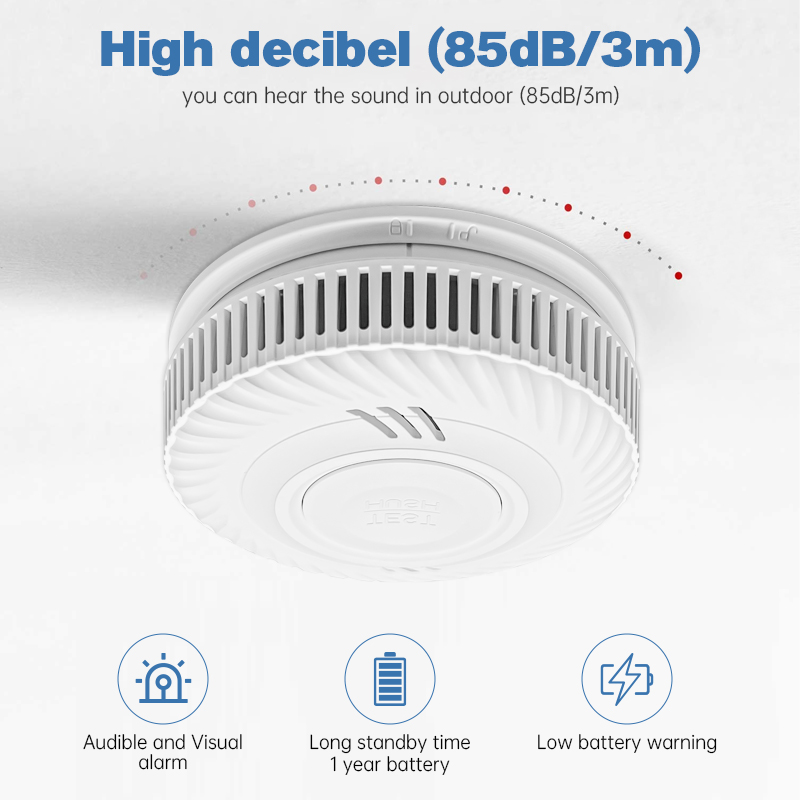

85dB High Volume Buzzer
Powerful sound ensures alerts are heard throughout the home or building.
How can we assist you today?
Frequently Asked Questions
1.How do this smoke alarms work?
2.Can the alarms connect wirelessly without a hub?
Yes, the alarms use RF technology to connect wirelessly without requiring a central hub.

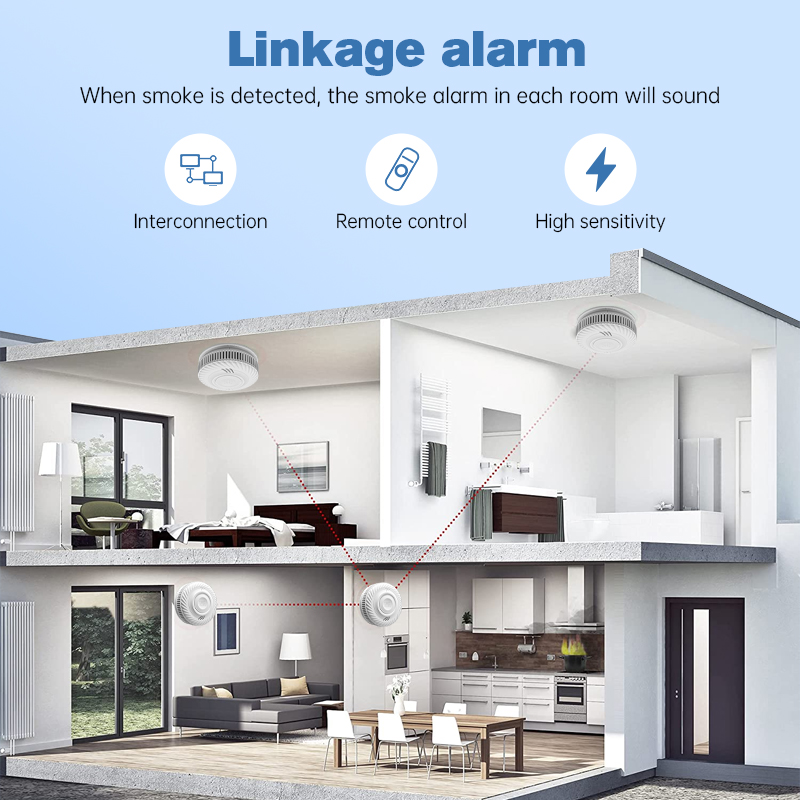

3.What happens when one alarm detects smoke?
When one alarm detects smoke, all interconnected alarms in the network will activate together.
4.How far can the alarms communicate with each other?
They can communicate wirelessly up to 65.62ft（20 meters） in open spaces and 50 meters indoors.
5.Are these alarms battery-powered or hardwired?
They are battery-powered, making installation simple and flexible for various environments.
6.How long does the battery last in these alarms?
The batteries have an average lifespan of 3 years under normal usage conditions.
7.Are these alarms compliant with safety standards?
Yes, they meet EN 14604:2005 and EN 14604:2005/AC:2008 safety certification requirements.
8.What is the decibel level of the alarm sound?
The alarm emits a sound level of over 85dB, loud enough to alert occupants effectively.

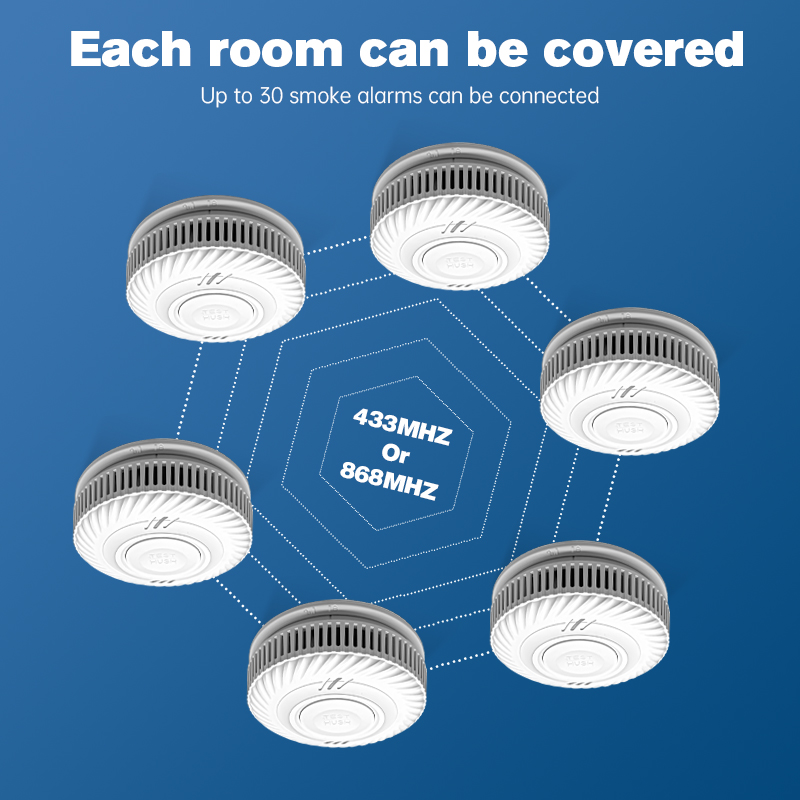

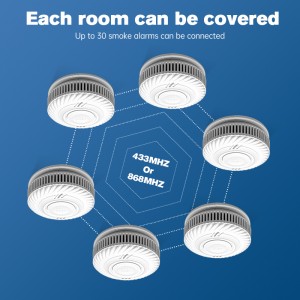

9.How many alarms can be interconnected in one system?
A single system supports interconnection of up to 30 alarms for extended coverage.
