• Carbon Monoxide Detector
  • Y100A – Carbon Monoxide Detector
  • Y100A – Carbon Monoxide Detector

    Our Carbon Monoxide Detector uses advanced electrochemical sensors to provide reliable detection of CO, offering both audible and visual alerts to ensure safety.

    Summarized Features:

    • Accurate Detection – Uses high-quality electrochemical sensors for precise and reliable CO detection, avoiding false alarms.
    • Long Battery Life – Features a long-lasting battery (approximately 3 years), minimizing the need for frequent replacements.
    • Audible & Visual Alerts – Provides both sound and visual alerts when CO levels reach dangerous thresholds, ensuring quick action.

    Product Highlights

    Product Parameter

    High-Quality Sensors

    Utilizes advanced electrochemical sensors for accurate CO detection and early warning.

    Wide Detection Range

    Detects CO concentration levels ranging from low to dangerous thresholds, ensuring timely alerts.

    User-Friendly Design

    Simple installation with easy-to-use features like volume control and test/silence buttons.

    Reliable Performance

    The alarm operates within a wide range of temperatures (-10°C ~ 55°C) and humidity conditions.

    Compact & Durable

    Small, lightweight design with a 3-year maximum lifespan, making it both efficient and cost-effective.

    Technical Parameter Value
    Product Name Carbon Monoxide Alarm
    Model Y100A-AA
    CO Alarm Response Time >50 PPM: 60-90 minutes, >100 PPM: 10-40 minutes, >300 PPM: 3 minutes
    Supply Voltage DC3.0V (1.5V AA Battery *2PCS)
    Battery Capacity About 2900mAh
    Battery Voltage ≤2.6V
    Standby Current ≤20uA
    Alarm Current ≤50mA
    Standard EN50291-1:2018
    Gas Detected Carbon Monoxide (CO)
    Operating Temperature -10°C ~ 55°C
    Relative Humidity ≤95% No Condensing
    Atmospheric Pressure 86kPa-106kPa (Indoor use type)
    Sampling Method Natural Diffusion
    Alarm Volume ≥85dB (3m)
    Sensors Electrochemical Sensor
    Max Lifetime 3 years
    Weight ≤145g
    Size 868632.5mm

    LCD Smart Display

    The integrated high-definition LCD screen provides real-time information on current CO concentration, ambient temperature, and device status, allowing users to monitor indoor air quality at a glance. The display automatically adjusts brightness at night, ensuring information remains visible without disrupting sleep. It also records peak values, helping users track potential CO sources and identify potential issues with gas appliances before they become hazardous.

    Smart Concentration Monitoring

    Our carbon monoxide detectors precisely measure and display CO concentrations in the 0-999PPM range. The alarm activates when detecting levels of 50PPM or higher, with response times proportional to concentration levels. Our sophisticated algorithm differentiates between temporary spikes and sustained increases, effectively reducing false alarms while ensuring immediate alerts during genuine dangerous situations.

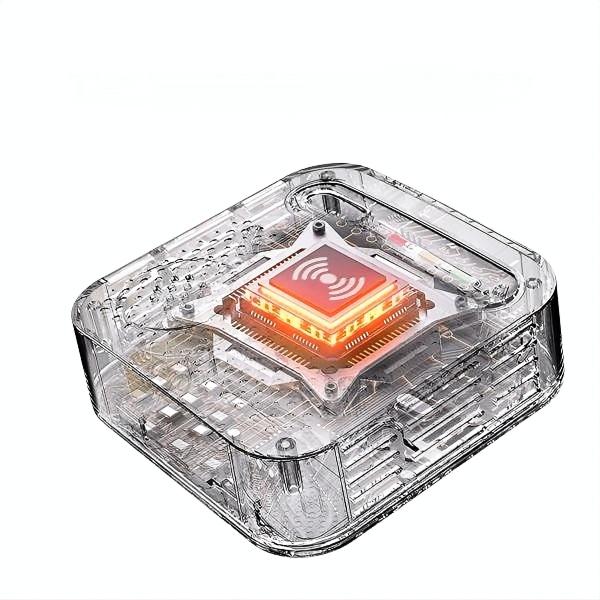

    Electrochemical Sensor Technology

    Our carbon monoxide detectors utilize advanced electrochemical sensor technology that delivers exceptional sensitivity and accuracy. These high-performance sensors can detect CO at very low concentrations, providing earlier warning times for enhanced safety. With a service life of up to 10 years, our sensors ensure long-term stable operation with minimal maintenance requirements, making them ideal for residential and commercial installations.

    Do you have any special requirements?

    We are committed to delivering high-quality, customized solutions that meet your exact needs. To ensure our products align with your requirements, please provide the following details:

    SPECIFICATIONS

    Let us know the specific technical and functional requirements for the product to ensure it meets your standards.

    Application

    Describe the intended application or environment in which the product will be used, helping us tailor our solutions for your specific needs.

    Defects Liability Period

    Share your preference for warranty or defects liability terms, allowing us to offer the most suitable coverage.

    Quantity

    Please indicate the desired order quantity, as pricing may vary depending on the volume.


    Start Your Integration Project

    Our technical team is ready to discuss your specific integration requirements and provide customized solutions.

    Frequently Asked Questions

  • How does the carbon monoxide detector work?

    The carbon monoxide detector uses an electrochemical sensor to detect the presence of CO in the air. When the CO concentration reaches a dangerous level, it activates both audible and visual alarms to alert individuals to the threat.

  • What is the lifespan of the carbon monoxide detector?

    The carbon monoxide detector has a maximum lifespan of 3 years, after which the device needs to be replaced to ensure reliable performance.

  • Can the carbon monoxide detector be used in all environments?

    Yes, the detector is suitable for various environments, including homes, offices, and industrial spaces. However, it should not be exposed to extreme temperatures or humidity levels beyond the recommended range.

  • How do I install the carbon monoxide detector?

    The installation process is simple, and the detector can be mounted on the ceiling or wall. Ensure it is placed in areas where CO is most likely to accumulate, such as near fuel-burning appliances or in enclosed spaces.

  • What should I do if the carbon monoxide alarm goes off?

    If the alarm goes off, immediately evacuate the area and seek fresh air. Contact emergency services to inspect the CO levels, and do not re-enter the space until it has been deemed safe.
